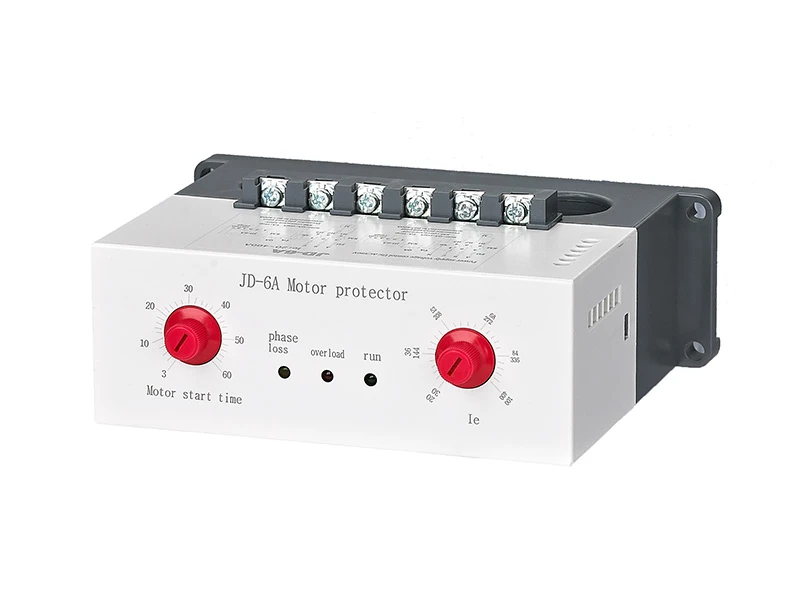

JD series Comprehensive motor protector 20-400A

JD-6A

JD series Comprehensive motor protector 20-400A

Applicable to AC 50/60Hz power supply circuits with a voltage of 380V and below, the JD series motor comprehensive protector is paired with AC contactors and other switching circuits to construct motor control circuits.

Voltage	220V /380V
Current	20-400A
Rated insulation voltage Ui	AC380V

Get a Touch >>

Application

Description

Technical Variables

Other

Product Introduction

It ensures reliable protection for switching electrical contacts when the motor's main circuit experiences abnormal operating conditions such as phase failure, overload, and stalling.

Product structure and performance characteristics

Application and Service Range: JD-6A Motor Comprehensive Protector, suitable for AC 50 /60Hz,voltage 220V or 380V power supply circuit and AC contact switch circuit composed of motor control circuit. The protection conform with the requiements in GB/T14048.4

Normal work condition: The altitude is not more than 20oo meters, the ambient temperature is not higher than + 40℃ and not lower than-5℃, rated control power supply voltage range of 85 %-110 % rated voltage, in the medium without serious vibration and explosion risk, and the medium is not enough to corrode the metal and damage the insulation of the gas and dust, in the rain and snow invasion of the place.

Technical Specifications

Voltage	220V /380V
Current	20-400A
Rated insulation voltage Ui	AC380V
Rated control power supply voltage Us	AC50/60Hz AC220V AC380V
Rated operating current range (le)	20A-100A 80A－400A
Overload action time	The tripping time under the multipleof currentsetting value TP
	Tripping level	1.2times	1.5times	7.2 times
	3	Tp<2h	Tp<6min	Tp<10s
	10	Tp<2h	Tp<2min	Tp<10s
	30	Tp<2h	Tp<1.5min	Tp<20s
	60	Tp<2h	Tp<1min	Tp<30s
Phase action time	Any phase failure of three-phase power supply ≤3S (Attention: When there is no currentinal three phases,theprotector does not determineitas aphasefailure.)
Contact capacity	AC380V、3A; AC220V、5A (Resistive)
Reset	1.Power off-power on again.2.Press the 'Reset'
Electrical life	≥10×10⁴ times
Mechanical life	≥100×10² times

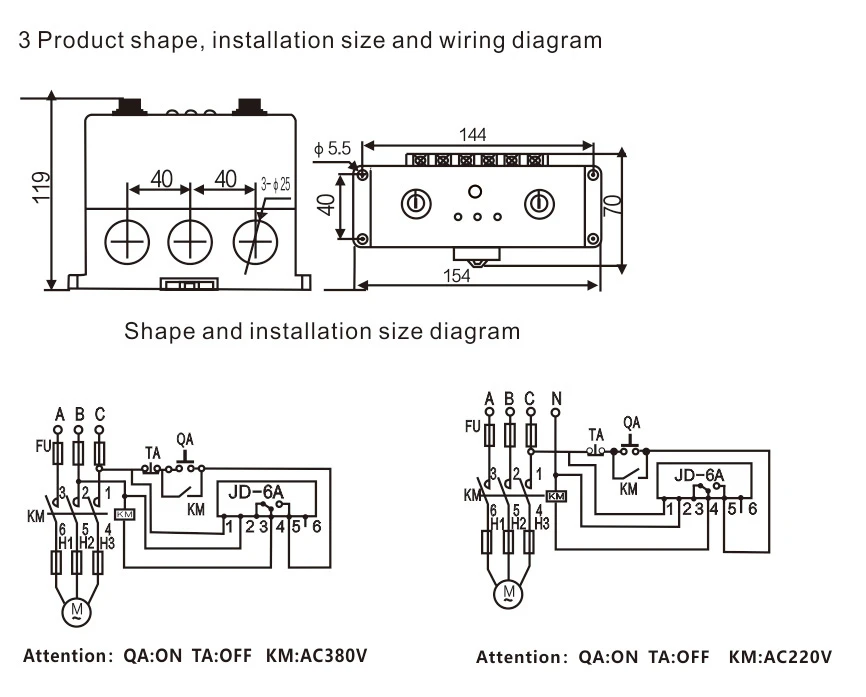

Installation method	Devicetype (TH35 type mounting rail or screw fixed installation)

JD-6A specification model (with reset)
Serial Number	Voltage	Setting Current	Contact Type	Terminal Wiring Position	Remarks
1	220V	20A-400A	1 normally open	6 digits	Regular model
2	220	20A-100A	1 normally open 1 normally closed	5 digits
3	220	80A-400A	1 normally open 1 normally closed	5 digits
4	380V	20A-400A	1 normally open	6 digits	Regular model
5	380V	20A-100A	1 normally open 1 normally closed	5 digits
6	380V	80A-400A	1 normally open 1 normally closed	5 digits

JD-6A specification model without reset
Serial Number	Voltage	Setting Current	Contact Type	Terminal Wiring Position	Remarks
1	220V	20A-400A	1 normally closed	6 digits	Regular model
2	220	20A-100A	1 normally open 1 normally closed	5 digits
3	220	80A-400A	1 normally open 1 normally closed	5 digits
4	380V	20A-400A	1 normally closed	6 digits	Regular model
5	380V	20A-100A	1 normally open 1 normally closed	5 digits
6	380V	80A-400A	1 normally open 1 normally closed	5 digits
