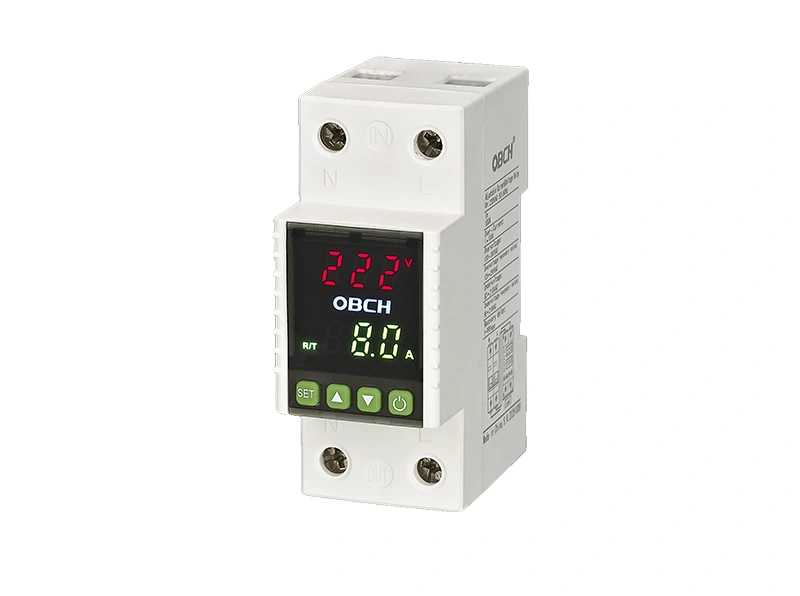

OBS7-6-VA/1P+N/80A

Digital voltage/current protector with lighting logo

As a state-of-the-art electrical safety device, the Household Over-Voltage and Under-Voltage Protector features intelligent voltage monitoring capabilities. It triggers an automatic power cut whenever it identifies voltage levels that fall outside the normal threshold.

Voltage range	80-300V
Current	80A
Supply terminals	N,L

Get a Touch >>

Application

Description

Technical Variables

Other

Product Introduction

Once voltage stabilizes back to acceptable parameters, power is restored without any human intervention, delivering continuous defense for home appliances and boosting user safety.

Product structure and performance characteristics

Voltage Monitoring: Real-time detection of voltage anomalies. If the voltage exceeds or falls below predefined thresholds (e.g., over-voltage: AC270±5V; under-voltage: AC170±5V), the protector instantly cuts off power to prevent damage to connected devices.

Auto-Reclosing Function: Automatically resumes power supply after a brief delay (e.g., 30±10 seconds) when voltage stabilizes, eliminating the need for manual resetting.

Rapid Response: Acts within ≤1 second to safeguard sensitive electronics (e.g., TVs, refrigerators) from voltage surges or drops.

Durable Design: Built with magnetically held relays and micro-processor technology for low power consumption (≤2W) and high mechanical longevity (≥100,000 cycles).

Wide Application: Ideal for single-phase AC 230V systems commonly used in homes and commercial settings, with a load capacity of up to 80A.

Technical Specifications

Voltage range	80-300V
Current	80A
Supply terminals	N,L
Rated supply voltage	AC 220V
Rated frequency	50/60Hz
>U setting range	130-300V
	80-210V
Voltage hysteresis	5V
Overvoltage trip delay	0.5s
Voltage accuracy	<1%
Max.operating phase voltage	350V
Max.operating current	80A
Altitude	≤200m
Ambient temperature	-25°℃~+50℃
Permissable relative humidity	≤50% at 40℃（without condensation)
Storage temperature	-25℃~+55℃

OBS7-6-VA/1P+N/63A

Digital voltage/current protector with lighting logo

OBS7-6-VA/1P+N/100A

Digital voltage/current protector with lighting logo

Let's Talk

We provide customised solutions for professional circuit protection.

Voltage Monitoring: Real-time detection of voltage anomalies. If the voltage exceeds or falls below predefined thresholds (e.g., over-voltage: AC270±5V; under-voltage: AC170±5V), the protector instantly cuts off power to prevent damage to connected devices.

​Auto-Reclosing Function: Automatically resumes power supply after a brief delay (e.g., 30±10 seconds) when voltage stabilizes, eliminating the need for manual resetting.

​Rapid Response: Acts within ≤1 second to safeguard sensitive electronics (e.g., TVs, refrigerators) from voltage surges or drops.

​Durable Design: Built with magnetically held relays and micro-processor technology for low power consumption (≤2W) and high mechanical longevity (≥100,000 cycles).

​Wide Application: Ideal for single-phase AC 230V systems commonly used in homes and commercial settings, with a load capacity of up to 80A.
