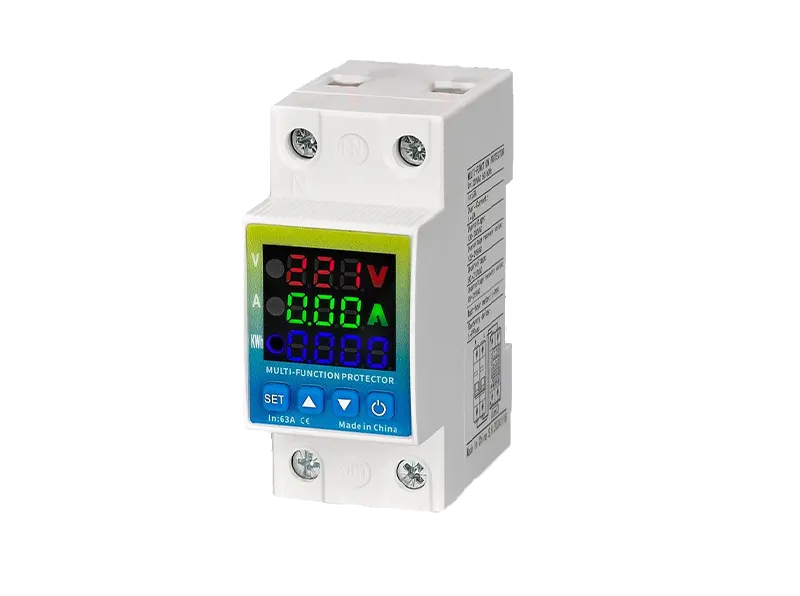

OBS7-5 Gradient Neutral Multi-functional protector

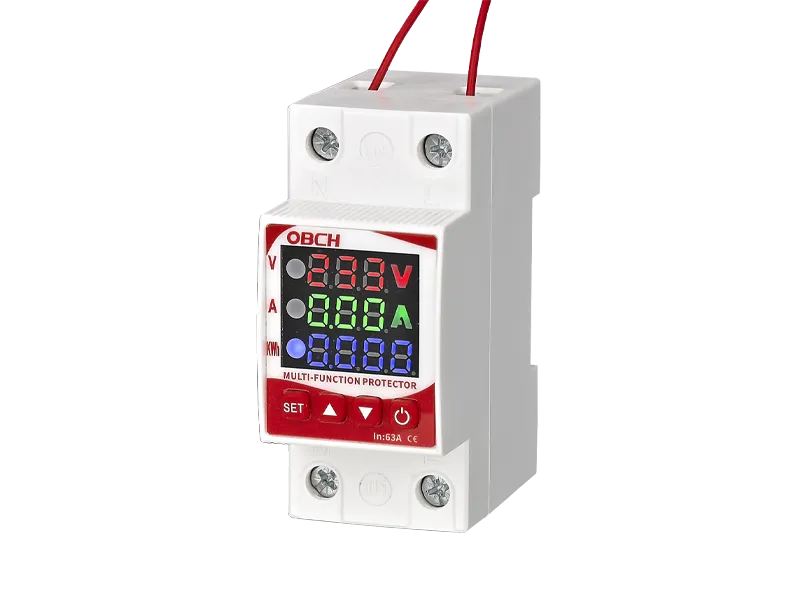

OBS7-5-VAM/1P+N Multi-functional protector

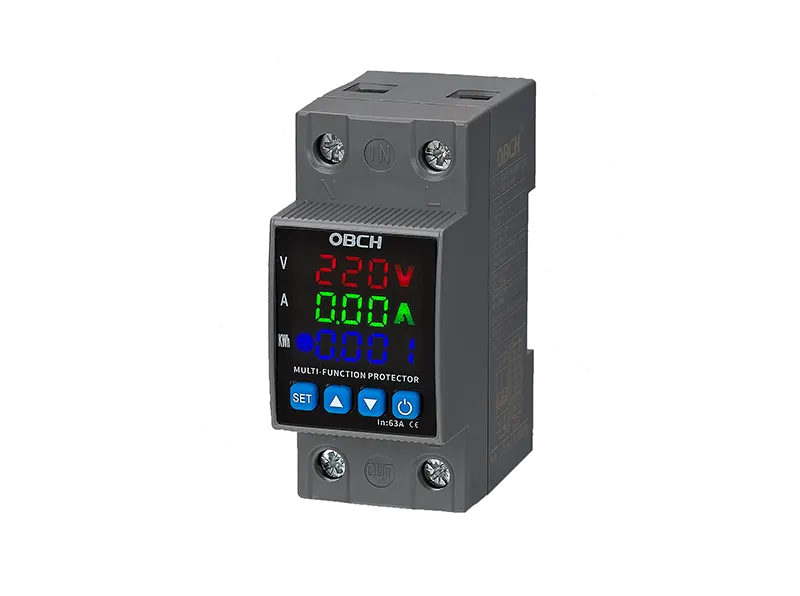

OBS7-5 three display black screen OBCH Multi-functional protector

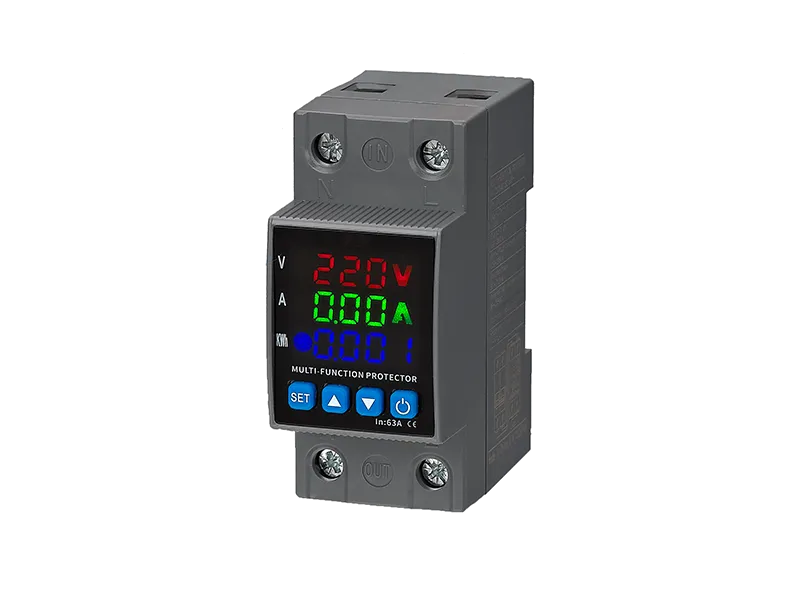

OBS7-5 three display black black screen neutral Multi-functional protector

OBS7-5 three display white black screen OBCH Multi-functional protector

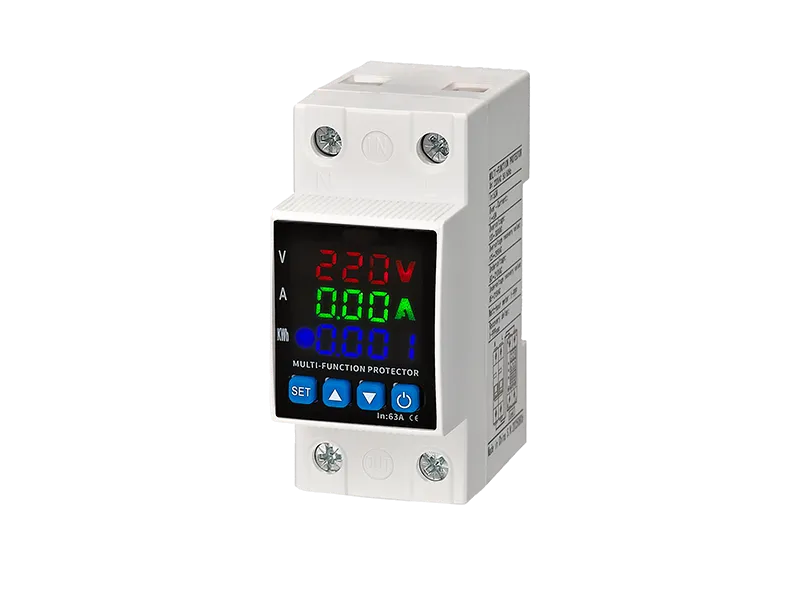

OBS7-5 three display white black screen neutral Multi-functional protector

OBS7-5-VAM/1P+N/63A

Multi-functional protector 1P+N

The Household Over-Voltage and Under-Voltage Protector serves as an advanced electrical safety tool. It is designed to disconnect power automatically when it detects that voltage levels are outside the normal range.

Specifications:

OBS7-5-VAM/1P+N/40A OBS7-5-VAM/1P+N/63A

Get a Touch >>

Play Video

Application

Description

Technical Variables

Other

Product Introduction

When the voltage gets back to a normal state, the device resumes power on its own—no manual operation is required. This ensures household appliances are protected continuously and user safety is boosted.

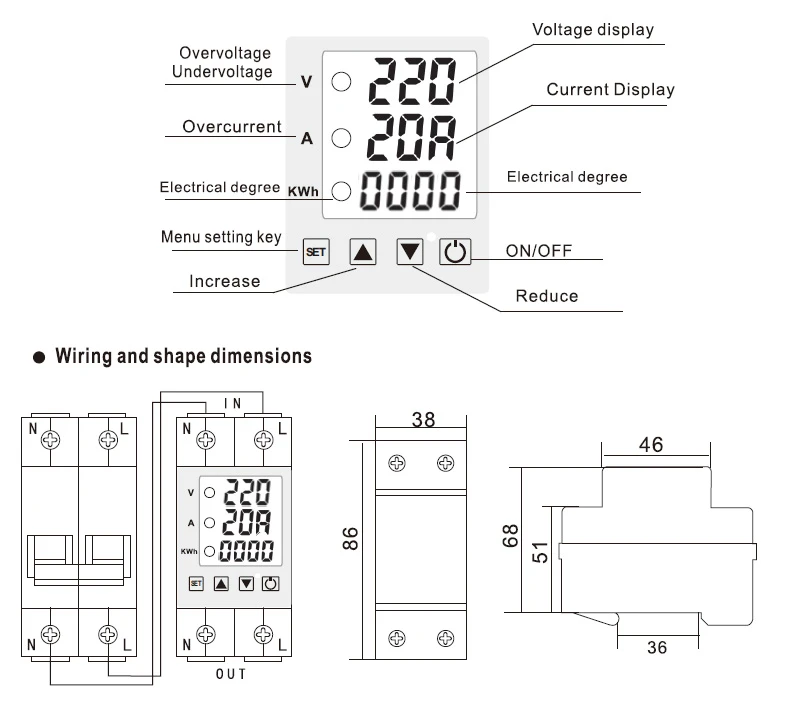

Product structure and performance characteristics

Voltage Monitoring: Real-time detection of voltage anomalies. If the voltage exceeds or falls below predefined thresholds (e.g., over-voltage: AC270±5V; under-voltage: AC170±5V), the protector instantly cuts off power to prevent damage to connected devices.

Auto-Reclosing Function: Automatically resumes power supply after a brief delay (e.g., 30±10 seconds) when voltage stabilizes, eliminating the need for manual resetting.

Rapid Response: Acts within ≤1 second to safeguard sensitive electronics (e.g., TVs, refrigerators) from voltage surges or drops.

Durable Design: Built with magnetically held relays and micro-processor technology for low power consumption (≤2W) and high mechanical longevity (≥100,000 cycles).

Wide Application: Ideal for single-phase AC 230V systems commonly used in homes and commercial settings, with a load capacity of up to 63A.

Technical Specifications

Voltage range	80-300V
Current	63A
Rated supply voltage	AC 220V
Operation voltage range	AC 80V-300V (single phase)
Rated frequency	50/60Hz
Electric current (>A) setting range	1~63A
Overvoltage (>U) setting range	130~300V
Under voltage (	80-210V
Error	2%
>U and	0.5S
Reset/start delay	1s~999s
Voltage measurement accuracy	1% (Not exceeding 1% of the overall range)
Operatintg temperature	-50℃~55℃
Humidity	≤50% at 40℃(without condensation)
Storage temperature	-30℃~70℃

Let's Talk

We provide customised solutions for professional circuit protection.

Specifications:

Voltage Monitoring: Real-time detection of voltage anomalies. If the voltage exceeds or falls below predefined thresholds (e.g., over-voltage: AC270±5V; under-voltage: AC170±5V), the protector instantly cuts off power to prevent damage to connected devices.

​Auto-Reclosing Function: Automatically resumes power supply after a brief delay (e.g., 30±10 seconds) when voltage stabilizes, eliminating the need for manual resetting.

​Rapid Response: Acts within ≤1 second to safeguard sensitive electronics (e.g., TVs, refrigerators) from voltage surges or drops.

​Durable Design: Built with magnetically held relays and micro-processor technology for low power consumption (≤2W) and high mechanical longevity (≥100,000 cycles).

​Wide Application: Ideal for single-phase AC 230V systems commonly used in homes and commercial settings, with a load capacity of up to 63A.
