Digital voltage/current protector

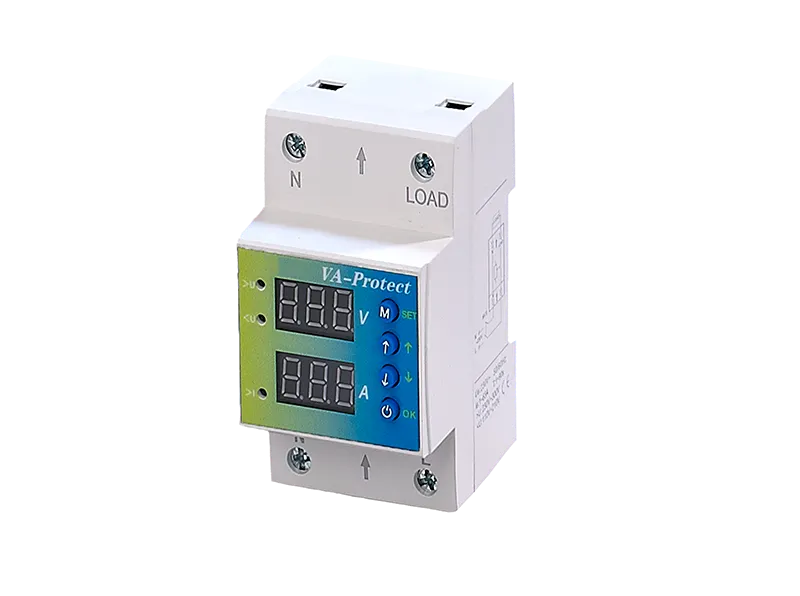

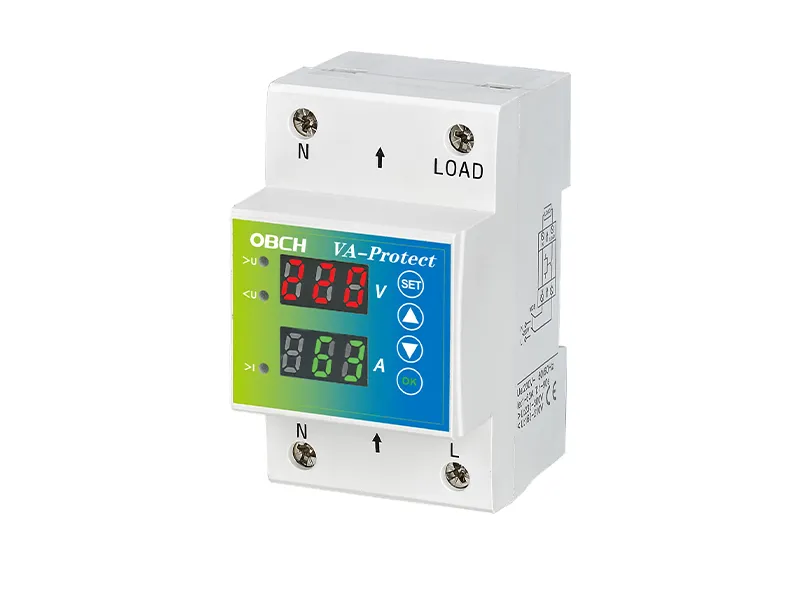

OBS9 Dual Display OBCH Neutral Digital voltage/current protector

OBS9-VA/1P+N

Digital voltage/current protector

The Household Over-Voltage and Under-Voltage Protector serves as a sophisticated electrical safety device. It is designed to disconnect the power supply automatically when unusual voltage levels are detected.

Specifications:

OBS9-V/1P+N OBS9-VA/1P+N

Get a Touch >>

Play Video

Application

Description

Technical Variables

Other

Product Introduction

When the voltage returns to a normal scope, the device resumes power spontaneously—no manual operation is required. This guarantees uninterrupted protection for household appliances and improves user safety.

Product structure and performance characteristics

Voltage Monitoring: Real-time detection of voltage anomalies. If the voltage exceeds or falls below predefined thresholds (e.g., over-voltage: AC270±5V; under-voltage: AC170±5V), the protector instantly cuts off power to prevent damage to connected devices.

Auto-Reclosing Function: Automatically resumes power supply after a brief delay (e.g., 30±10 seconds) when voltage stabilizes, eliminating the need for manual resetting.

Rapid Response: Acts within ≤1 second to safeguard sensitive electronics (e.g., TVs, refrigerators) from voltage surges or drops.

Durable Design: Built with magnetically held relays and micro-processor technology for low power consumption (≤2W) and high mechanical longevity (≥100,000 cycles).

Wide Application: Ideal for single-phase AC 230V systems commonly used in homes and commercial settings, with a load capacity of up to 63A.

Technical Specifications

Voltage range	80-300V
Current	40A/63A

Let's Talk

We provide customised solutions for professional circuit protection.

Specifications:

Voltage Monitoring: Real-time detection of voltage anomalies. If the voltage exceeds or falls below predefined thresholds (e.g., over-voltage: AC270±5V; under-voltage: AC170±5V), the protector instantly cuts off power to prevent damage to connected devices.

​Auto-Reclosing Function: Automatically resumes power supply after a brief delay (e.g., 30±10 seconds) when voltage stabilizes, eliminating the need for manual resetting.

​Rapid Response: Acts within ≤1 second to safeguard sensitive electronics (e.g., TVs, refrigerators) from voltage surges or drops.

​Durable Design: Built with magnetically held relays and micro-processor technology for low power consumption (≤2W) and high mechanical longevity (≥100,000 cycles).

​Wide Application: Ideal for single-phase AC 230V systems commonly used in homes and commercial settings, with a load capacity of up to 63A.

Let's Talk

Auto-Reclosing Function: Automatically resumes power supply after a brief delay (e.g., 30±10 seconds) when voltage stabilizes, eliminating the need for manual resetting.

Rapid Response: Acts within ≤1 second to safeguard sensitive electronics (e.g., TVs, refrigerators) from voltage surges or drops.

Durable Design: Built with magnetically held relays and micro-processor technology for low power consumption (≤2W) and high mechanical longevity (≥100,000 cycles).

Wide Application: Ideal for single-phase AC 230V systems commonly used in homes and commercial settings, with a load capacity of up to 63A.
