KG316T-LY

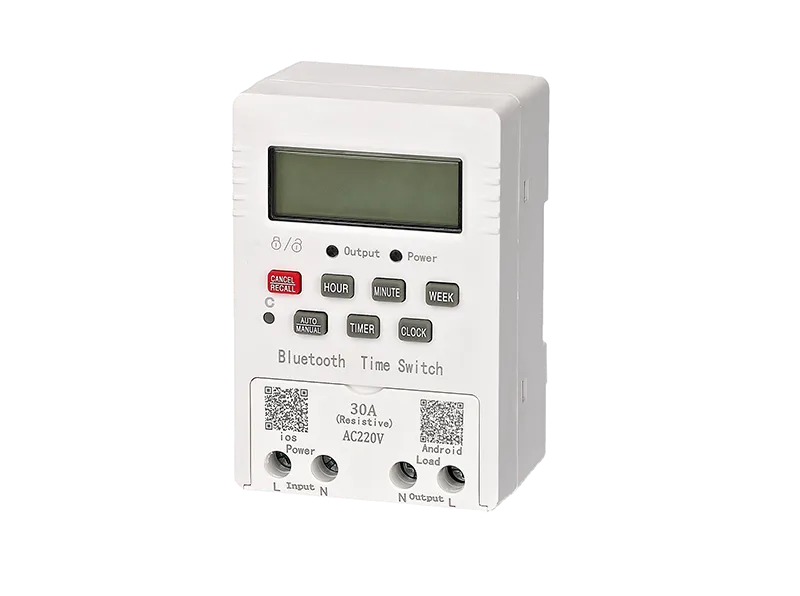

KG316T series time control switch-BLE
A ​Time Control Switch, also known as a timer switch, is a device that automatically turns electrical circuits or appliances on and off based on a pre-set schedule.
Voltage optional 220V/380V
Max current 30A
Product Introduction

Its main purpose is to automate the operation of devices, bringing convenience, enhancing security, and saving energy.

Product structure and performance characteristics
The primary advantages of using a time control switch include:
Energy Efficiency: It helps reduce electricity consumption by ensuring devices like lights and water heaters are only on when needed .
Convenience: It automates repetitive tasks, such as controlling garden irrigation or turning on a coffee maker in the morning, without manual intervention .
Security: By automating indoor and outdoor lighting, it can create the appearance that a home is occupied, which helps deter burglaries
Technical Specifications
Rated insulation voltage Ui AC380V.
Rated control power supply voltage Us AC110V, AC220V, AC380V
Enclosure protection level IP20.
Relay Current 10A, 30A, 63A / AC250V (resistive):
Pollution Level Level 3.
Switching time can be set to cycle daily or weekly.
Timer groups 18 groups/16 groups switch time (manual, automatic dual-use)
Time Control Range 1 minute to 168 hours
Daily walking error less than or equal to ±1 second
Mechanical lifespan greater than or equal to 1 million times.
Lifespan Greater than or equal to 100,000 times





KG316T-X, KG3 16T, and KG316T-A differences
Model KG316T-X KG316T-B KG316T-A
Keyboard lock Have Have Have
Reset Have None None
Number of scheduled groups Group 18 Group 16 Group 16
Timing to the second Have None None
Intelligent error reporting Have None None
Automatic proofreading Have None None
Power on/off function Have None None
Relay current 10A、30A、63A 10A、30A 10A、30A
Countdown Single and double countdown Countdown Countdown
Outline dimensions 108*70*51 (mm)B 117*77*53 (mm) 103*63.5*44 (mm)
