ATS-5S

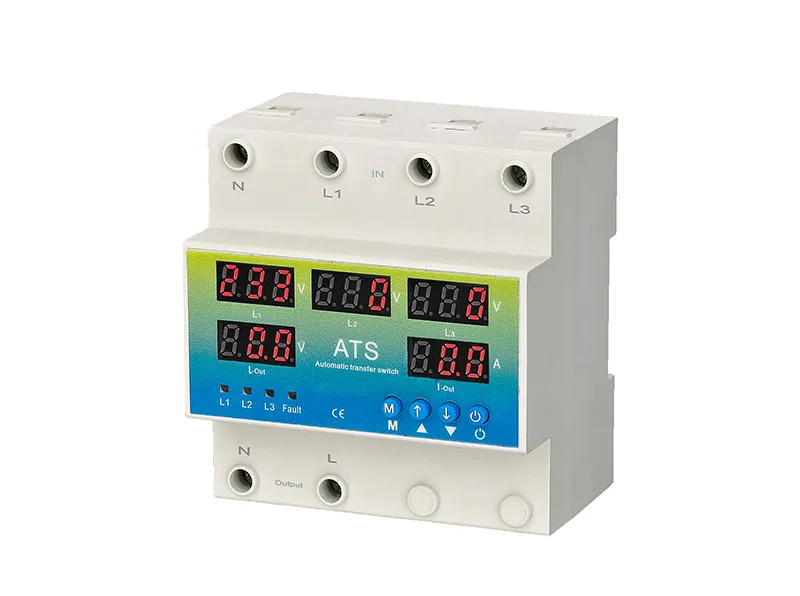

High reliability ATS-5 display

An Automatic Transfer Switch (ATS) is an electrical device that automatically transfers the power supply for connected loads from a primary source (typically the utility grid) to a backup or alternate source (like a generator or a second utility feed) when it detects a failure, outage, or significant quality issue (e.g., undervoltage, overcurrent, undercurrent) in the primary source.

Rated setting current	63A /100A
Supply terminals	N,L1,L2,L3
Rated frequency	50/60Hz

Get a Touch >>

Application

Description

Technical Variables

Other

Product Introduction

Its primary purpose is to ensure continuous and reliable power to critical equipment and systems, thereby minimizing downtime and preventing potential damage or hazards.

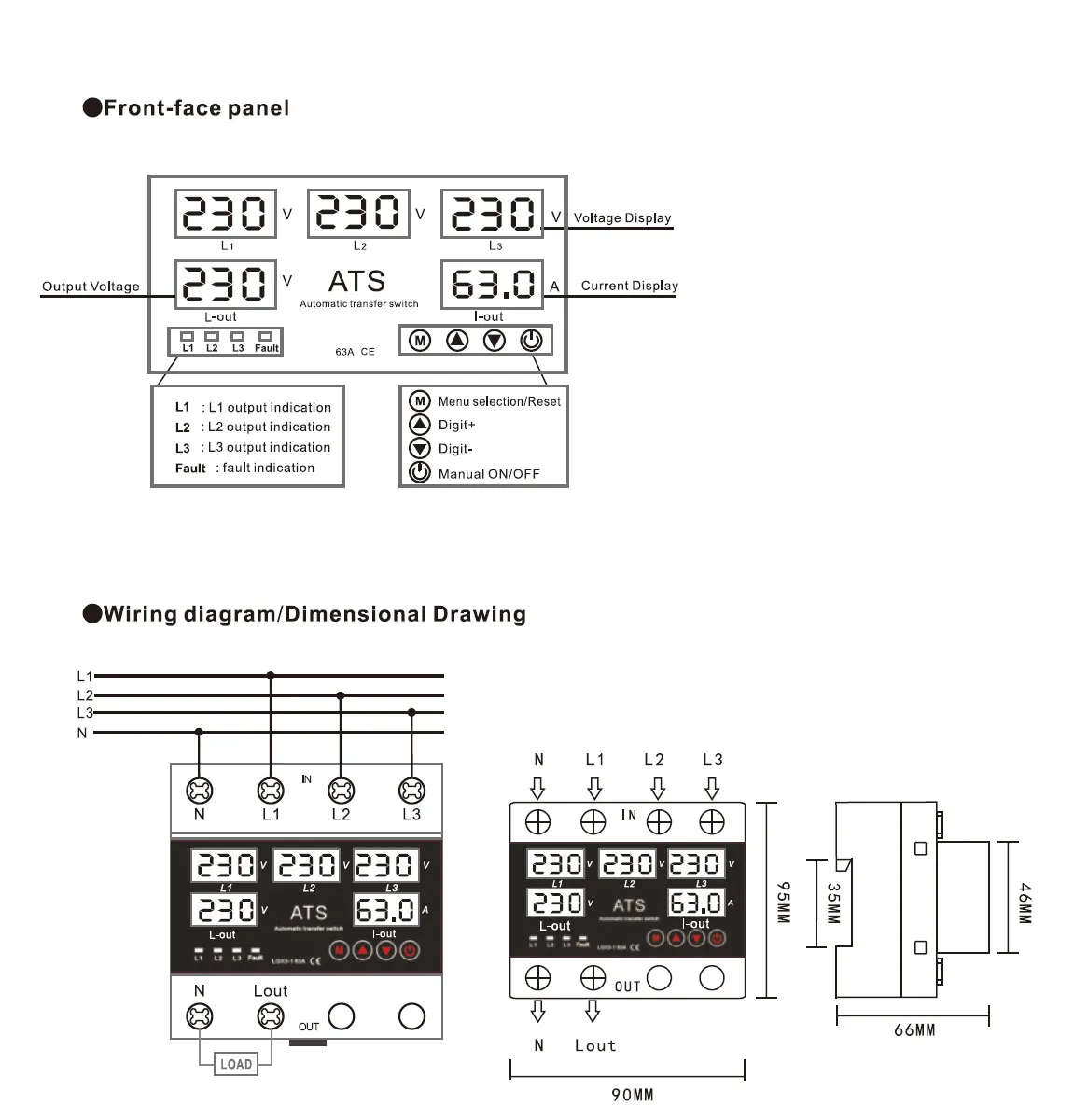

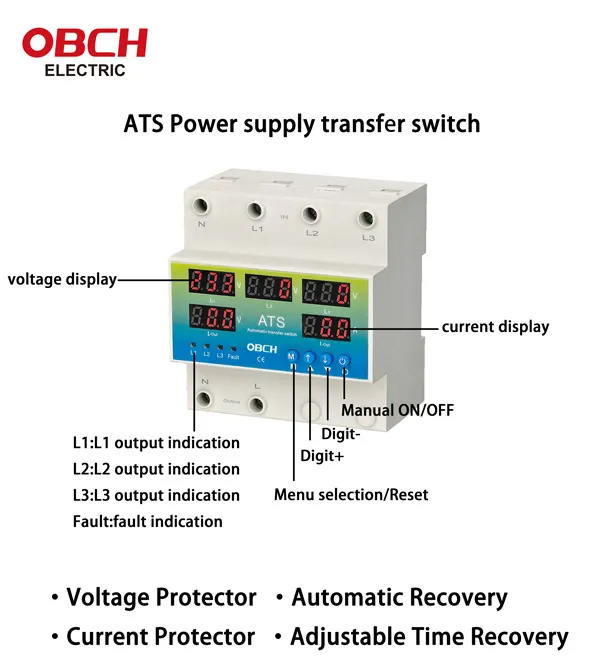

Product structure and performance characteristics

Technical Specifications

Rated frequency	50/60Hz
Max setting range	130V -300V
Min setting range	80V-210V
Rated setting current	63A /100A
Supply terminals	N,L1,L2,L3
Auto-reclosing delay(Ton)	1-999s
Return delay to priority phase	1-999s
Switch delay to reserve phases	<0.2s
Voltage hysteresis	5V
Voltage accuracy	<1%
Max. operating phase voltage	350V
Rated operating current	63A/100A
Max. operating current	63A/100A
Pollution degree	3
Electrical life	10⁵
Mechanical life	10⁶
Altitude	≤2000m
Ambient temperature	-25℃~+50℃
Permissable relative humidity	<50% at 40℃（without condensation)
Storage temperature	-25℃~+55℃
